IPD - Caterpillar 3406E/C15 Single Piece Steel Piston Upgrade kit - KIFSPC15W/02/CS

As an official stocking distributor for IPD, BPS Diesel offers the premium Caterpillar 3406E/C15 Single Piece Steel Piston Upgrade Kit (KIFSPC15W/02/CS)—a robust inframe overhaul solution designed to enhance durability and performance in non-ACERT applications.

This upgrade transitions your engine from the original 2-piece articulated pistons (1807352) to advanced 1-piece IPDSteel® welded pistons, maintaining the same 16.6:1 compression ratio while providing superior strength, heat resistance, and longevity under extreme loads and conditions. Featuring crevice seal liners with a 0.001” oversized ID to prevent scuffing and ensure smoother operation, this kit minimizes downtime, reduces wear, and extends service life for heavy-haul trucking, construction, and industrial operations. Engineered with a shorter piston pin to accommodate the 1-piece design, it requires no additional modifications. Ideal for operators seeking reliable, high-value aftermarket upgrades without warranty implications.

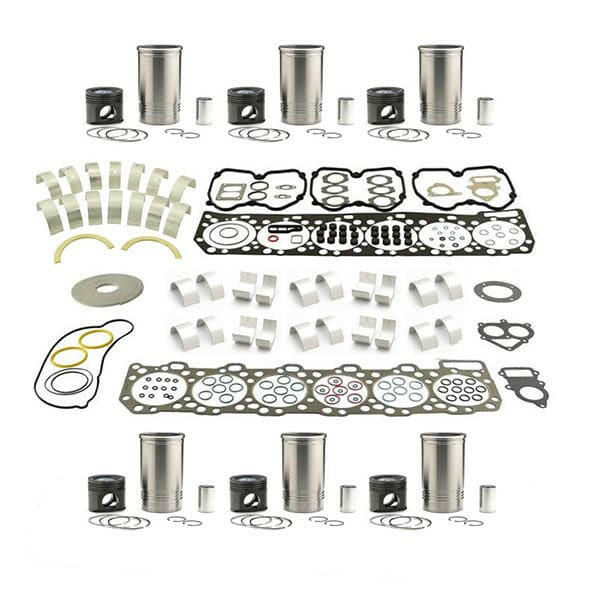

Kit Includes:

• 1687246SP – PISTON PIN, SPECIAL (x 6)
• 2531752 – THRUST PLATE (x 2)
• 3178766 – MAIN BEARING, STD (DIESEL) (x 7)
• 7E1177 – RETAINER, PISTON PIN (x 12)
• 9Y7735G – CON ROD BRG STD GROOVED (x 6)
• C15RS5 – RING SET (x 6)
• IPDSPC15W – SPECIAL C15 STEEL WELDED PISTON (x 6)
• C15002SPNLS – GASKET SET, IN-FRAME 48 (x 1)
• 1685248 – SEAL-ISOLATION (x 1)
• 1979322CSSPWS – LINER SPECIAL WITH SEALS (x 6)

Key Features:

• 1-Piece IPDSteel® Welded Pistons: Advanced single-piece design with special pins (1687246SP) and retainers (7E1177) for enhanced durability, thermal stability, and performance over original articulated pistons in high-stress environments.
• Crevice Seal Liners: 0.001” oversized ID (1979322CSSPWS) with seals to eliminate scuffing, improve sealing, and reduce blow-by for cleaner, more efficient operation.
• Precision Bearings: Standard main (3178766), rod (9Y7735G), and thrust (2531752) components for smooth rotation, reduced friction, and reliable axial load management in rugged applications.
• Upper Gasket Set: Comprehensive in-frame seals (C15002SPNLS) for leak-free assembly and optimal compression.
• No Modifications Needed: Direct upgrade maintaining original compression ratio, with shorter pin for seamless fit in 3406E/C15 setups.
• Off-Highway Focus: Engineered for non-ACERT applications, providing value without warranty for heavy-duty, extreme-condition use.

Compatibility: Designed for Caterpillar 3406E and C15 engines (non-ACERT, off-highway) originally equipped with 2-piece piston #1807352—verify your engine specifications for exact fitment in heavy-duty equipment and trucks.

Cross References:

• OEM Piston: 1807352
• OEM Piston Pin: 1687246
• OEM Piston Pin Retainer: 7E1177
• OEM Liner: 1979322
• OEM Rod Bearing (STD Grooved): 9Y7735
• OEM Main Bearing (STD): 3178766
• OEM Thrust Plate: 2531752
• OEM Isolation Seal: 1685248
