BPS Cummins ISX / QSX Saw Cut Connecting Rod – 4059429

The original ISX workhorse rod — saw-cut, shop-proven, and built to keep that Cummins pulling instead of sitting.

Early ISX and QSX engines made their reputation running hard, and the connecting rod is what turns that combustion into torque at the wheels. When one lets go, you are not “a little down.” You are parked. The BPS 4059429 is the saw-cut  rod these engines were built with — flat machined cap faces, the right big-end bore, and the strength to take a beating mile after mile.

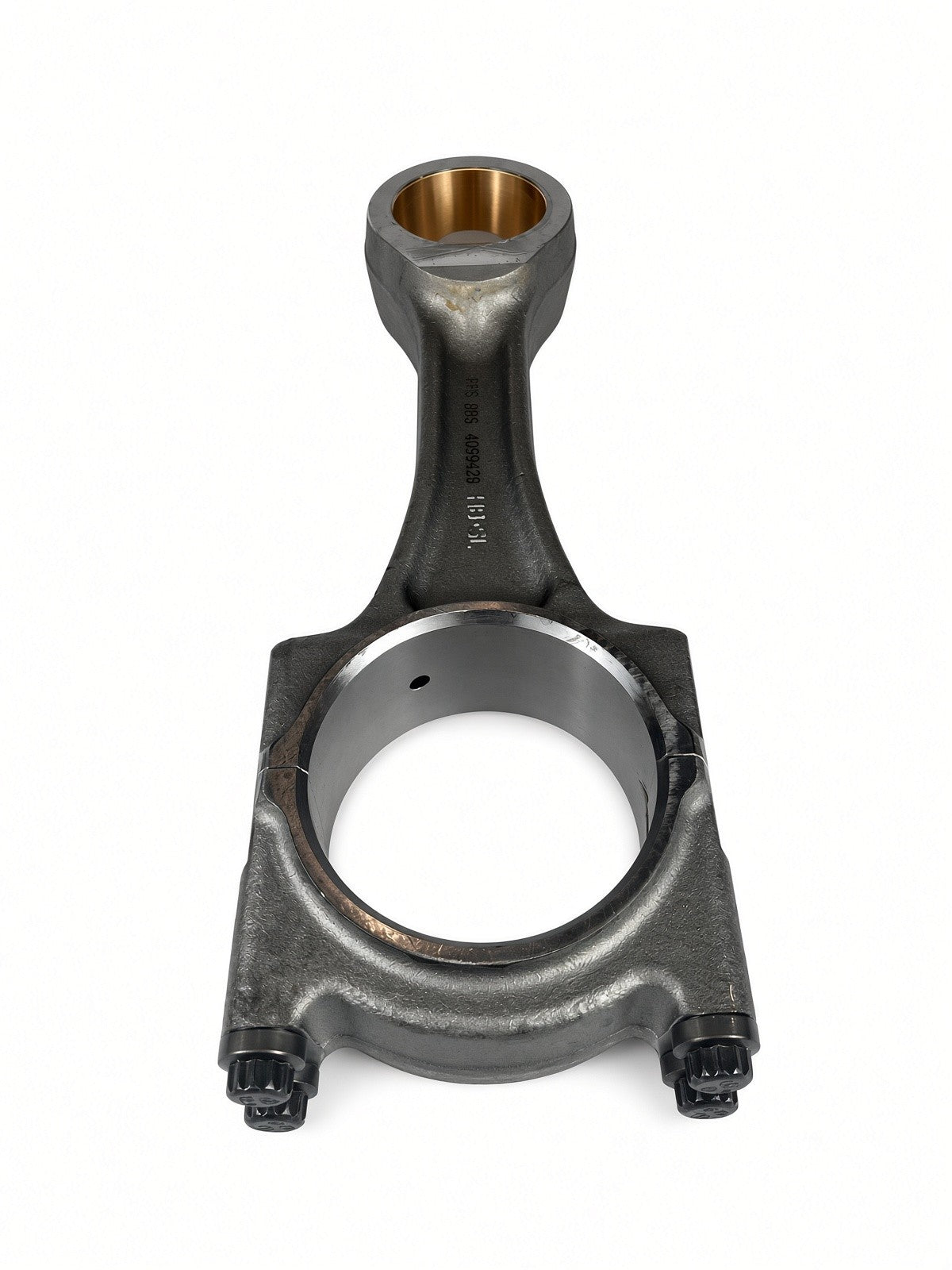

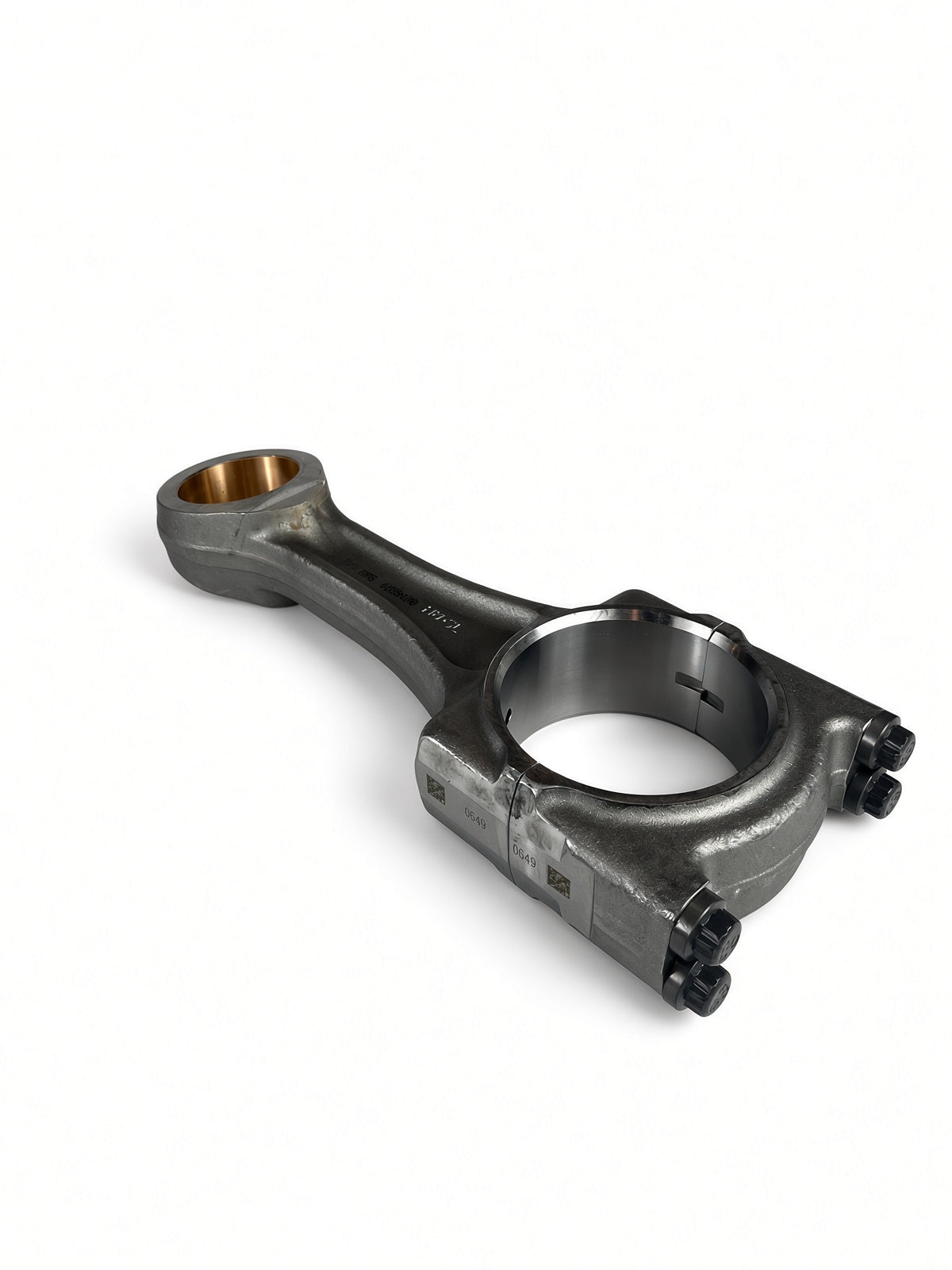

This replaces Cummins 4059429, 4059449, and 4923749. New pin bushing is pressed in so you are not waiting on machine work. On the bench it is obvious: smooth cap face, no fracture pattern, no ID hole in the cap. Use saw-cut rod bearings only. Fractured bearings do not belong in this rod, period.

If you are rebuilding an ISX, QSX, or Signature and the rod you pulled is saw-cut, this is the part that gets the truck back to making money without the Cummins dealer invoice. Buy one and fix the hole that failed, or buy the set of 6 and walk away knowing the bottom end is right.

Key Features

• Saw-cut cap for earlier ISX / QSX engines
• Direct replacement for Cummins 4059429 / 4059449 / 4923749
• New pin bushing installed
• Requires saw-cut connecting rod bearings only
• Built for the engines that still dominate the rebuild market

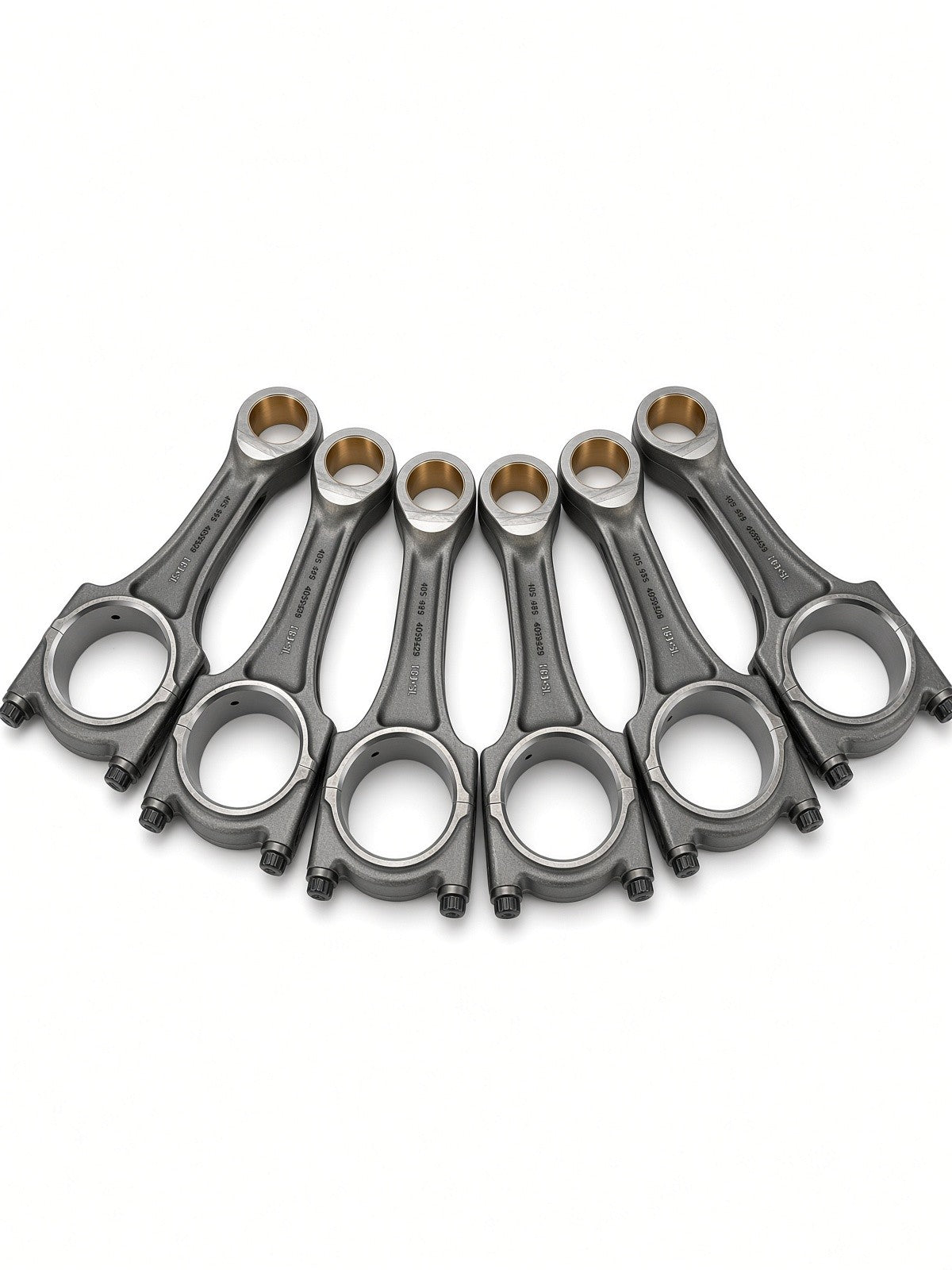

• Available as a single rod or complete set of 6

OEM Cross References
4059429, 4059449, 4923749, 4059429RX, 171634

Applications
Cummins ISX, QSX, and Signature-series engines using the saw-cut connecting rod. Confirm the rod style before ordering.

Fractured style ISX15 / X15 rods are BPS 3689108.
